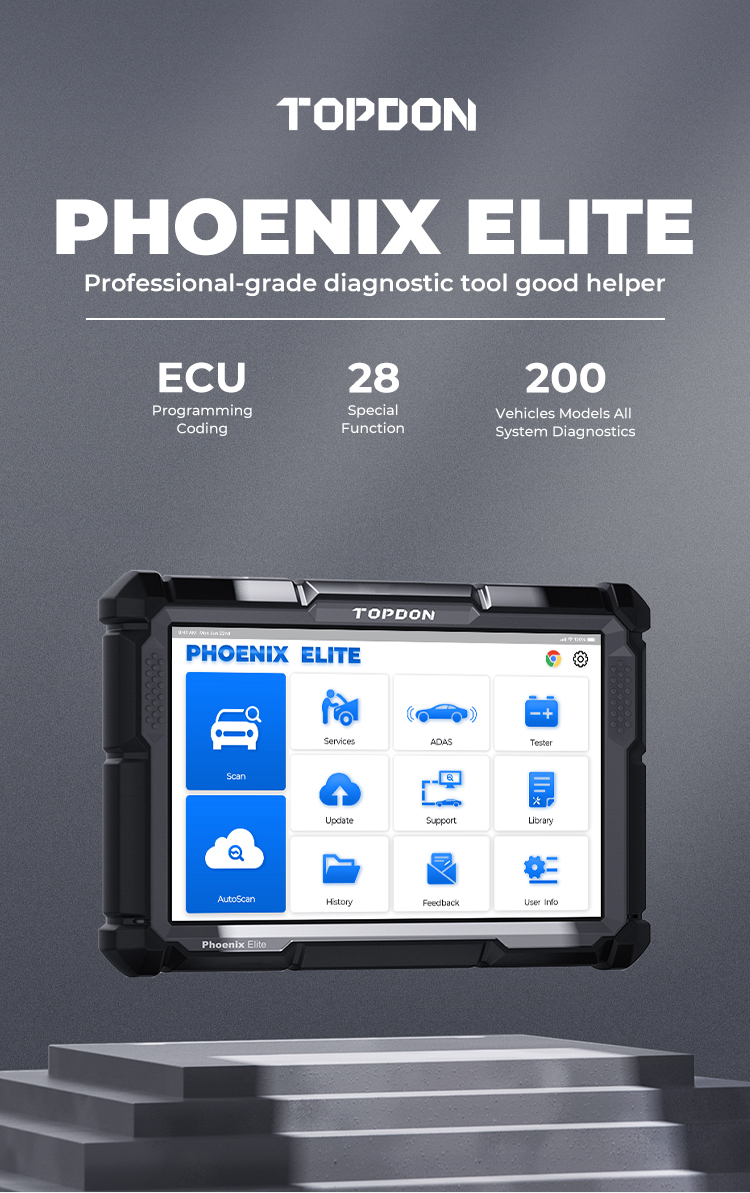

TOPDON Phoenix Elite OE-level Car Diagnostic Scanner

$1,799.00

The Phoenix Elite is a professional-grade diagnostic scanner that offers OE-grade quality. The tool provides fast and accurate diagnosis with a 10.1-inch LCD screen, 4-core 2.0 GHz processor, and Android 10.

Its topology capabilities allow technicians to gain a clear view of vehicle systems and quickly spot communication problems or identify fault codes.

The tool can perform cloud-based programming, active testing, coding, initialization, memory reset, and more.

Add to Wishlist
Add to Wishlist
Add to Wishlist
Add to Wishlist
Hc55ee68dce154a0387713aa1a2e622a8U
H334eecb7167f451f9b3b8781650f69003
H803fa71b95d1420e8107b69ed483c198R
Hc0debfb1c6944f1fa06bb5a6939f2f62y
Hbb9905f8685544fcb2600afffee11b88e
H017de4da21524b1d88e3987a1765fd5av
H6a05ad9ff81f47d6b731b1185bc7722fk
Hbd265897ed2c4b52831bb2511f2ba61cR
H96552e692fc54290b9ad74bc4a5127den
Hed9ea5b296334048a911c52592ee075bC

The Phoenix Elite is a professional-grade diagnostic scanner that offers OE-level quality. This tool provides fast and precise diagnostic capabilities with an LCD 10.1” screen, 4-Core 2.0 GHz Processor, and Android 10.

Its topology feature lets technicians have a clear picture of the automobile’s systems and quickly find communication issues or identify trouble codes.

This tool can perform cloud-based programming, active tests, coding, initializations, memory resets, and much more.

FEATURES

Connect to the newest vehicles and technology; The Phoenix Elite meets all the latest requirements for vehicle network communication.

  • The Phoenix Elite comes with an updated VCI compatible with the CAN FD protocol, making this a must-have device to work on the most modern cars.

All Data In One View

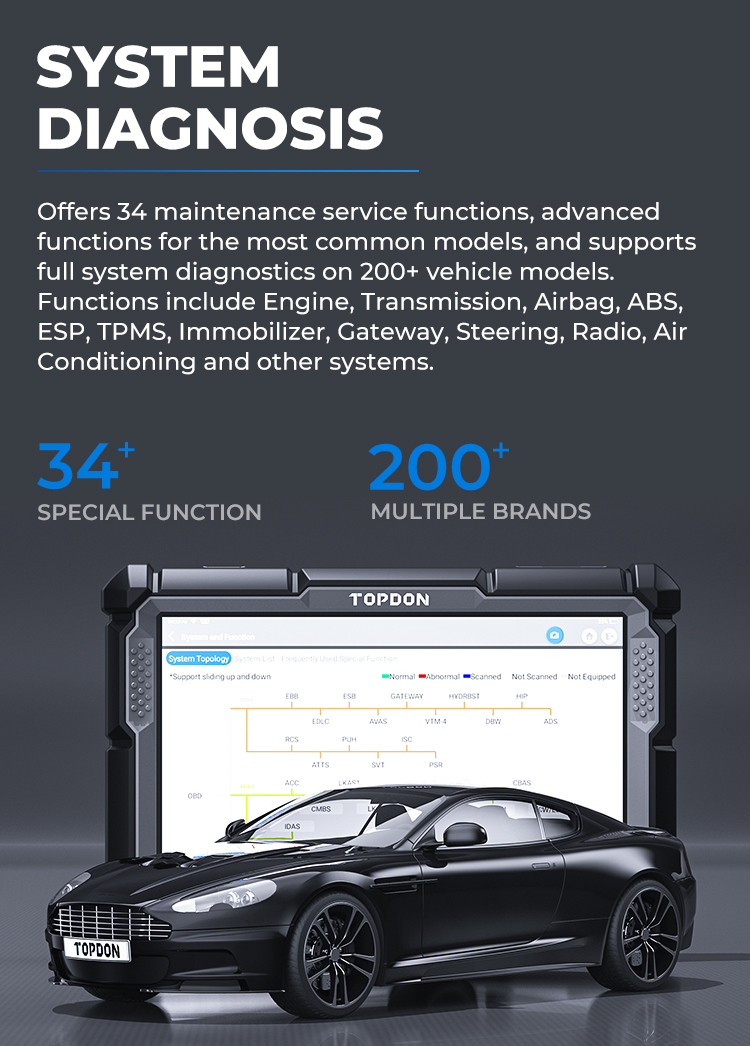

  • Topology map granting a clear picture of related vehicle systems and status-Clearly defined CAN network layout.

  • Diagnose communication issues in one glance

  • Color-coded mapping of each module communication status

  • Active tests, special functions, coding, initialization, and memory resets

Guided procedures for VAG vehicles

  • Step by step guided diagnostics process, based on code, for VW and Audi Group Vehicles.

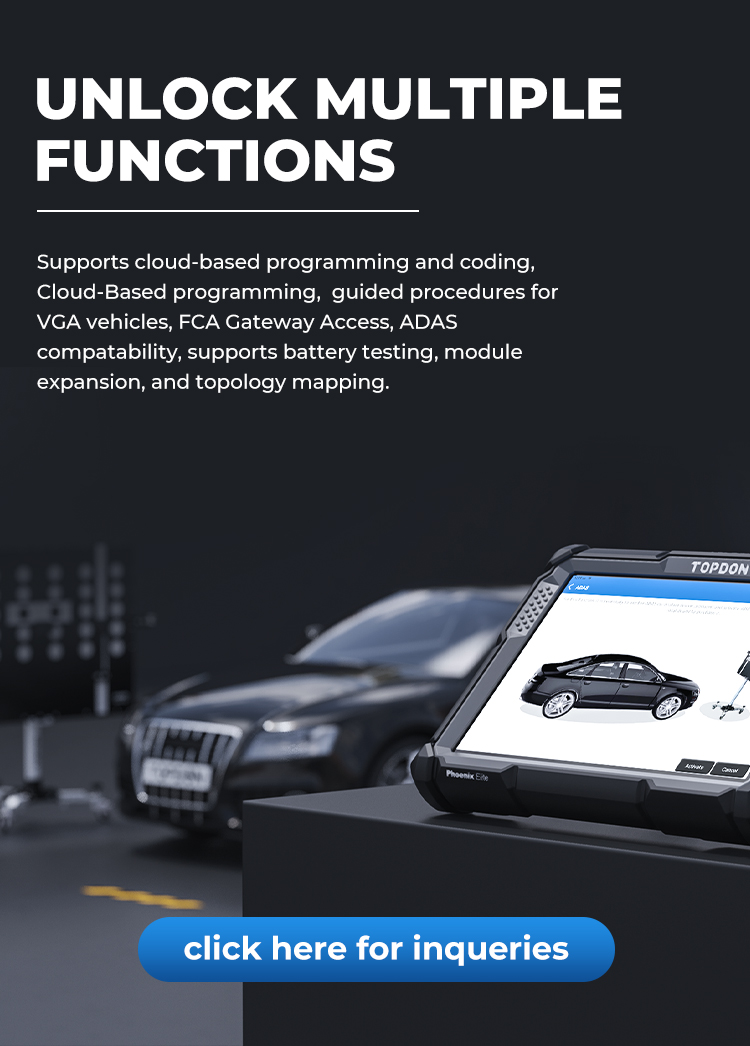

Expand coverage to include ADAS Calibrations.

  • Not just a diagnostics tool, The Phoenix Elite allows you to expand your abilities.  By upgrading your tablet with ADAS calibration and adding the necessary targets, you can turn your high-performance scan tool into an ADAS system Calibration station. You are creating a whole new revenue stream for your shop.

Pre-scan and post-scan reporting

  • Show and Prove the before and after reports. The Phoenix Elite Pre-Scan and Post Scan feature allows the technician to record the codes before repair. This allows submission to the customer or insurance company for repair approval. Once the repair is complete, the codes can be cleared, and a Post Scan report can be run to show all codes are clear and the vehicle has a clean bill of health.

Vehicle Auto VIN and Autodetect

  • You no longer need to select the Year-Make-and Model; the Phoenix Elite can automatically capture the vehicle’s VIN number and determine all relevant information to auto-populate the car. Saving the technician time and preventing mistakes

TECHNICAL SPECIFICATIONS

SCANNER

  • Display: LCD 10.1-Inch, 1280 * 800
  • Processor: CPU 4-Core Processor, 2.0 GHz
  • System: Android 10.0
  • RAM: 4G
  • ROM: 64G
  • Battery: 12000 mAh / 3.8V
  • Operating Voltage: 9~18V
  • Storage Temperature: -20℃~60℃(-4℉~140℉)
  • Working Temperature: 0℃~50℃(32℉~122℉)
  • Dimension: 278*191*48 mm(10.94*7.52*1.89″)
  • Package size: 468*320*143 mm(18.43*12.60*5.63″)
  • Net Weight: 3.45 lb (1566.5g)

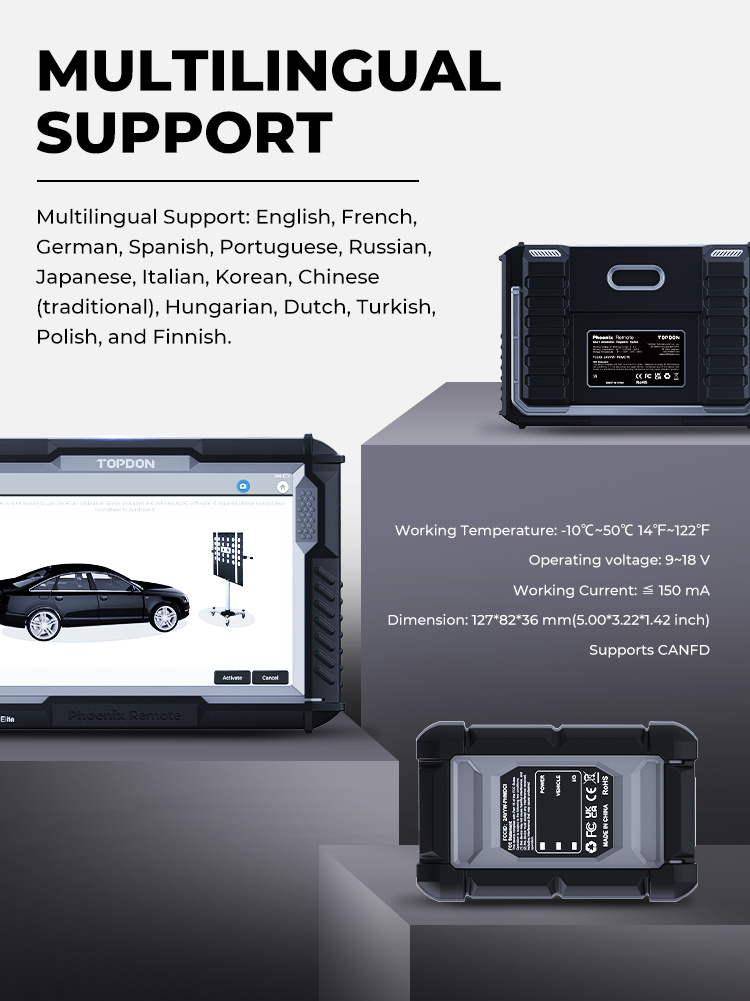

  • Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese(traditional), Hungarian, Dutch, Turkish, Polish, Finnish



VCI CONNECTOR

  • Working Temperature: -10℃ to 50℃(14℉ to 122℉)
  • Operating Voltage: 9 to 18 V
  • Working Current: ≦ 150 mA
  • Dimension: 127 x 82 x 36mm(5 x 3.22 x 1.42”)
  • New protocol supported: CANFD

PACKAGE LIST

  • 1* Phoenix Elite
  • 1* VCI Dongle
  • 1* OBDI Adapter BOX Transfer Line
  • 1* OBDII Extension Cable
  • 1* Cigarette Lighter Cable
  • 1* Type-C to USB Cable
  • 1* Battery Clamps/Cable Set
  • 1* Power Adaptor
  • 1* User Manual
  • 1* Password Envelope
  • 10* Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
  • 4* Fuse (φ5*20mm)
  • 2* Fuse (φ6*30mm)
  • 1* BMW F-Chassis Programming Cable
Weight 4 kg
